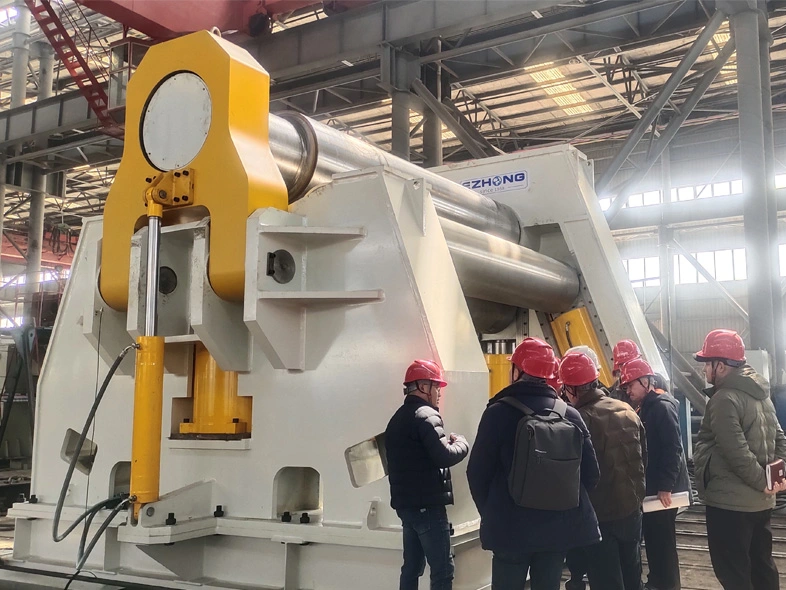

EZW12 four rolls fully hydraulic plate rolling machine support cold and hot rolling with adjustable center distance and electro-hydraulic control drive structure. 4-roll plate rolling machine is precise, offer the highest possible degree of automation and are at the same time very easy to operate. Can feed the metal plate at one time, and complete the pre-bending of the plate end and the rolling of the workpiece without turning around.
Model | Max. Width | Without Prebending | With Prebending | Working Speed | Dimensions |
W12-120X4000 | 4000mm | 120mm | 100mm | 3.5m/min | 10000×5157×5170mm |
Performance characteristics
- Precise product accuracy, unique bending process, high-precision end pre-bending, continuous bending in cold and hot rolling;
- Exclusive double-roller full-drive technology brings the edge of the sheet closer to the clamping point to obtain the shortest straight edge length;
- Simultaneous rolls movement and micro positioning for higher productivity and precision;
- Exclusive advanced hydraulic system for low energy consumption;
- Adjustable rolls and tilt easily to allow for the execution of cone bending.
- New Siemens CNC control with independent mobile operating table.
Notes for using the machine:
1. Check whether the 4 rolls rolling machine and the connecting screws are loose and normal.
2. When operating, pick up the falling materials at the furnace joint of the 4 rolls rolling machine in time.
3. Check whether the 4 rolls rolling machine is off-track and whether the joint connection is intact. Adjust and repair in time.
4. The fire has not been completely extinguished at night, so someone needs to be on duty to prevent the fire from burning and damaging the equipment.
5. Mechanics should add butter and oil to each component in time, check whether the machine has abnormal movement on time, deal with it in time, check whether each component is missing in time, and make up for any missing.
Sturdy and over-dimensioned structure for maximum reliability.
Forged from high-quality steel, heat treated and induction hardened.
Strong top and side supports, automatic feeding tables with centering devices.
Simple, one-person operation
EZHONG 4 rolls rolling machine widely used in boiler, wind tower, petroleum, chemical, boiler, shipbuilding, metal structures and machinery manufacturing industries.Can rapid prototyping, high-precision roll, less investment.
